Some Information to read provided from the Marlon Website..... The Marlon New Product development team sat down with the goal of developing a trailer that would do more, could be used for Multiple uses and could be used in Multiple seasons. Development code name was Multi Functional Trailer.

It can be towed behind a selection of vehicles to haul your sled, ATV, Trail SxS, stack of wood …………that’s why it is all aluminum including the decking.

Extruded sides

Some reading Info for you from the MARLON website.

ALSO COMES IN A 10' VERSION

It can be towed behind a selection of vehicles to haul your sled, ATV, Trailer SxS, stack of wood. ……that’s why it is all aluminum!

The sled industry needs a wide trailer for the larger trail machines and a narrow trailer for mountain sleds. We used our experiences and knowledge from 20+ year’s in the sled deck industry and adapted the slide out sides to work on our new offering Multi Functional two place trailers.

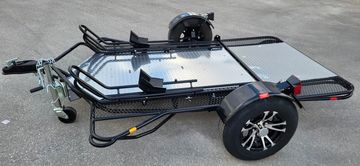

Motorcycle Hauler designed for 1 or 2 full sized bikes. Loading rail is bolted to the underside of the trailer. A 2200 lb torsion axle for a low, smooth riding, & easy loading for your prized bikes. AL diamond plate floor, flip up rear, that locks to the frame to reduce it's size when stood up & stored.

- GVW 2,200 lbs · Curb weight 364 lbs

- Payload capacity 1,836 lbs

- Bed dimensions 124" long 72" between    fenders - AL diamond plate floor

- 2" coupler

- Fully welded heavy duty steel tube frame

10' x 6' Galvanized Utility/ATV Trailer       The Rat-01 comes standard with re-enforced steel mesh floor. Galvanized finish, designed so that the loading ramps hook on over the rear trailer frame for rear loading or hook onto the side bars for easy side loading of ATV's. The ends of each steel floor panel have notches cut out for securing straps. The loading ramps can be stored on the trailer in the front.

• GVW: 2500 lbs
• Curb weight: 500 lbs
• Payload capacity: 2,000 lbs

10' x 6' Galvanized Utility/ATV Trailer

The Rat-02 comes standard with steel floor decking with punched floor for grip! Galvanized finish, designed so that the loading ramps hook on over the rear trailer frame for rear loading or hook onto the side bars for easy side loading of ATV's. The ends of each steel floor panel have notches cut out for securing straps. The loading ramps can be stored on the trailer in the front.

• GVW: 2500 lbs
• Curb weight: 500 lbs
• Payload capacity: 2,000 lbs

12' x 6.6' Galvanized Utility/ATV Trailer

The RAT-03 is a versatile trailer & it has never been more easy to get out on the trails! This trailer comes standard with LED lights, easy to use stand up ramp for easy loading, spring suspension for a smooth ride, side load with optional ramps or rear load. Tubular frame, A frame tongue, steel floor and many more great features.

• GVWR: 2,990 lbs
• Curb weight: 727 lbs
• Payload capacity: 2,260 lbs

14' x 6.6' Galvanized Utility/ATV Trailer

The RAT-04 is a versatile trailer & it has never been more easy to get out on the trails! This trailer comes standard with LED lights, easy to use stand up ramp for easy loading, spring suspension for a smooth ride, side load with optional ramps or rear load. Tubular frame, A frame tongue, steel floor and many more great features.

• GVWR: 2,990 lbs
• Curb weight: 860 lbs
• Payload capacity: 2,130 lbs

The ultimate lightweight aluminum body and 45 cubic feet of interior cargo space make it easy for you to take your gear with you. The walking beam suspension and 25" tires make navigating easy and safe while cruising over almost any terrain. OPTIONAL aluminum lid with hinges and hydraulic lifts that take over lifting the lid once it is started.

GVW: 1600 lbs. Curb Weight: 357 lbs.

Payload Capacity: 1320 lbs.

Tire Size 25”X12” X 9”

Bed Dimension: 69.1"Lx44"Wx24"D, 2” ball

*With Lid & Rack: $3,596

KPU-2990-72-12. Transporting ATVs, Mowers, or hauling heavy loads, this rugged 6 x 12 ft. Steel Utility Trailer is ready for nearly any task. Fold-down rails allow for loading via forklift, and a heavy duty full ramp for easy machine loading. A powder coat finish and aluminum mag wheels, it’s as attractive as it is durable.

Karavan’s SwayControl™ and QuietTow™

Overall length 192", width 96"

Bed length 144", width 74"

Tailgate height 49"

Trailer weight 967 lbs. Capacity 2,023 lbs.

Tires: ST205/75R14C

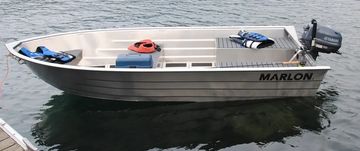

All welded hull, high density foam EVA seat covers.

Heavy duty transom and transom support

Traction grip on floor.

Welded Heavy duty bow cleat

Standard with two carrying handles on the bow and two on the transom for easy carrying.

Wide beams and wide chine width which results in better stability, faster on the plane

Length: 12'

Beam: 59"

Bow Height: 25"

Bottom Width: 47"

Approx Dry Weight: 204 lbs

Maximum HP: 10

Hull Gage: 0.079"

Transom: 15"

Transom Gauge: .118"

2 person capacity

Max Gross Load: 639 lb

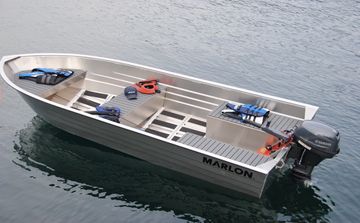

All welded hull, high density foam EVA seat covers.

Heavy duty transom and transom support

Traction grip on floor.

Welded Heavy duty bow cleat

Standard with two carrying handles on the bow and two on the transom for easy carrying.

Wide beams and wide chine width which results in better stability, faster on the plane

Length: 14'

Beam: 63"

Bow Height: 27"

Bottom Width: 52"

Approx Dry Weight: 229 lbs

Maximum HP: 20

Hull Gauge 0.079

Transom Height: 20"

Transom Gauge: .118"

3 Person Capacity

Max Gross Load: 821 lb

All welded hull, high density foam EVA seat covers.

Heavy duty transom and transom support

Traction grip on floor.

Welded Heavy duty bow cleat

Standard with two carrying handles on the bow and on the transom for easy carrying.

Wide beams and wide chine width which results in better stability, faster on the plane

Length: 16"

Beam: 71"

Bow Height: 27"

Bottom Width: 57"

Approx Dry Weight: 297 lbs

Maximum HP: 30

Hull Gauge: 0.079

Transom Height: 20"

Transom Gauge: .118"

4 Person Capacity

Max Gross Load:1,151 lbs

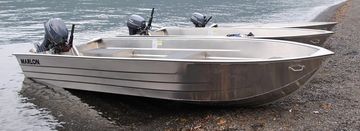

Marlon Jon boats are noted for their width and stability. Lightweight flat bottom SP boats all come with high density EVA seat pads, black non skid flooring.

Length: 9.84'

Beam: 55"

Bottom Width: 51"

Approx Dry Weight: 105 lbs

Max HP: 5 HP

Transom Height: 15"

Transom Gauge: .079"

Hull Gauge: .047"

Maximum Persons: 3

Max Gross Load: 549 lbs

Transom Prop Ready

Marlon Jon boats are noted for their width and stability. Lightweight flat bottom SP boats all come with high density EVA seat pads, black non skid flooring.

Length: 12.14'

Beam: 55"

Bottom Width: 51"

Approx Dry Weight: 132 lbs

Max HP: 10HP

Transom Height: 15"

Hull Gauge .047"

Transom Gauge .079"

Maximum Persons: 4

Max Gross Load: 881 lbs

Transom Prop Ready

Marlon Jon boats are noted for their width and stability. Lightweight flat bottom SP boats all come with high density EVA seat pads, black non skid flooring.

Length: 14.27'

Beam: 63"

Bottom Width: 55"

Approx Dry Weight: 198 lbs

Max HP: 20HP

Transom Height: 15"

Hull Gauge .079"

Transom Gauge .118"

Maximum Persons: 4

Max Gross Load: 1,322 lbs

Transom Prop Ready

Model: 1264 - Watercraft  - Double V-Side Design, Dime-Welded Construction,

8' Bunks.

Industry's Easiest Assembly & Installation

Capacity: 1,200 LB

Lift Travel: 50"

Inside Width: 64"

Overall Width: 72"    Overall Length: 80"

Exclusive Whisper Winch (the industry's quietest operation)

Easy use manual "Big Blue Wheel" operation.

 The ShorePort, a drive on PWC dock, is an easy to use drive on, push off floating PWC port. The ShorePort’s modular molded construction means it's virtually maintenance-free, and can be attached to nearly any floating dock system, any standing or wheel-in style dock system, or stand alone. Position the ShorePort alongside or perpendicular to your dock system for quick and convenient access to your watercraft, AND you can connect multiple ShorePorts for additional machine storage.

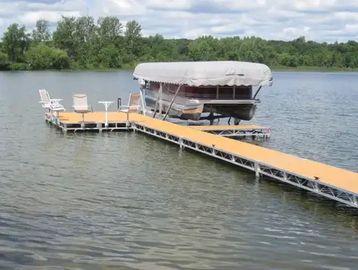

Model: 3009 DVS - Double V-Side Design, Dime-Welded Construction,

Bunks for V-Hulls

Industry's Easiest Assembly & Installation (8 piece design)

Capacity: 3,000 LB

Lift Travel: 66"

Inside Width: 108"

Overall Width: 120"    Overall Length: 127"

Exclusive Whisper Winch (the industry's quietest operation). with 12V Solar Battery Motorized Wireless Remote Operation.

Optional Canopy Length: 21’-27"

Just one of the many options for dock set ups (4) 4'x8' TS9 frame (32') (16) 2'x4' flow through none maintennace decking (6) from deck adjustable height screw legs (6) poly tires (4) leg post (4) leg pockets (4) foot pads Also available is 4'x16' frames,, screw legs with foot pads many diff decking options and design you can customize leg set up minus a screw leg put in adjustable post ect, and dock configuration as you need
